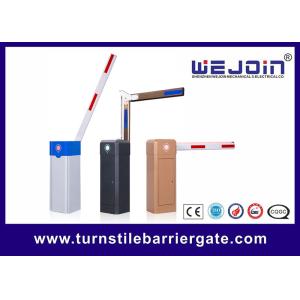

parking gate barrier for automatic parking system
Product Description:
Barrier gate, also named as intelligent/electric vehicle road blocker, is a widely used machine in gate access control application.
Boom barrier gate is very important for an automatic car parking management system and other traffic projects; this equipment widely uses for block the road, manage the access of the gate for all vehicles such as cars, trucks, bus even motorbike. Every day, you can easily find a barrier gate everywhere, airport, highway, commercial building, shopping mall, factory, hospital, and so on.
Vehicle Barrier Gate Functions & Features
1). DC permanent magnet synchronous motor(PMSM), servo control.
2). The motor has the same performance as the main motor of the CNC machine tool and the electric vehicle motor, it has high control precision, high torque density, good torque balance, low power consumption, high efficiency, and low noise.
3). Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
4). Manual clutch design: when power-of, turn the handwheel a little, then move the boom by hand.
5). Double tension spring crank transmission design, for a more stable and reliable structure.
6). No limit switch design, accurate encoder detection, detecting boom position when power on. And open/close speed is adjustable.
7). More sensitive and reacting faster when reversing on obstacles.
8). With counting, delay auto-closing, and auto-aging test function.
Technical Data
| Model | WJCB01SV-H | WJCB01SV-I |
| Running Speed | 1/1.5/2S | 3/4/5S | 5S | 5S | 5S | 5S |
| Boom-Type | Straight | Straight | 90° Folding | 180° Folding | 2 Fence | 3 Fence |
| Max Boom Length | 3.5M~4.5M | 4.5M~6M | 5M | 4M | 4.5M | 4M |
| Input Voltage | AC220V±10%, AC110V±10% |
| Frequency | 50/60HZ |
| Motor Voltage | DC310V |
| Enclosure Rating | IP54 |
| Working Temperature | -35°C ~ +85°C |
| MTBF | 6000000 times |
| Traffic Flow Application | 24 hours of uninterrupted operation |
| Max Motor Power | 150W |
| Max Motor Speed | 36r/min |
| Max Torque | 240N.m |
